IPD90P04P4L-04 TO-252 Ic Integrated Circuit In Motor Drivers

Brand Name : INFINEON

Model Number : IPD90P04P4L-04

Place of Origin : original

MOQ : 1pcs

Payment Terms : D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 97830pcs

Delivery Time : 3

Packaging Details : 4000

Stock : 8000+

Price : Negotiate

quality： : Brand new unused

Package / box : TO-252

Contact Now

ISO9001.pdf

Application:
IPD90P04P4L-04 can be used in switching mode power supplies, motor drivers, and other high current load switching circuits.
Conclusion:
IPD90P04P4L-04 has low conduction resistance and high switching speed, which can reduce power consumption and improve efficiency.
This transistor can withstand high voltage and high current, and has good thermal stability.
Parameters:
Rated current: 90A
Rated voltage: 40V
Conduction resistance: 3.6m Ω
Switching time: 50ns
Subelectrode capacitance: 2700pF
Thermal resistance: 0.52 ℃/W
Packaging form: TO-252 (DPAK)

Product Technical Specifications
EU RoHS Compliant with Exemption聽
ECCN (US) EAR99
Part Status Unconfirmed
SVHC Yes
SVHC Exceeds Threshold Yes
Automotive Yes
PPAP Unknown
Product Category Power MOSFET
Configuration Single
Process Technology OptiMOS
Channel Mode Enhancement
Channel Type P
Number of Elements per Chip 1
Maximum Drain Source Voltage (V) 40
Maximum Gate Source Voltage (V) 卤16
Maximum Continuous Drain Current (A) 90
Maximum Drain Source Resistance (MOhm) 4.3@10V
Typical Gate Charge @ Vgs (nC) 135@10V
Typical Gate Charge @ 10V (nC) 135
Typical Input Capacitance @ Vds (pF) 8900@25V
Maximum Power Dissipation (mW) 125000
Typical Fall Time (ns) 60
Typical Rise Time (ns) 20
Typical Turn-Off Delay Time (ns) 140
Typical Turn-On Delay Time (ns) 20
Minimum Operating Temperature (掳C) -55
Maximum Operating Temperature (掳C) 175
Supplier Temperature Grade Automotive
Packaging Tape and Reel
Mounting Surface Mount
Package Height 2.3
Package Width 6.22
Package Length 6.5
PCB changed 2
Tab Tab
Standard Package Name TO-252
Supplier Package DPAK
Pin Count 3

Product Tags:

IPD90P04P4L-04 Ic Integrated Circuit



Motor Drivers Ic Integrated Circuit



IPD90P04P4L-04 Integrated Circuit Ic Chip


China IPD90P04P4L-04 TO-252 Ic Integrated Circuit In Motor Drivers factory

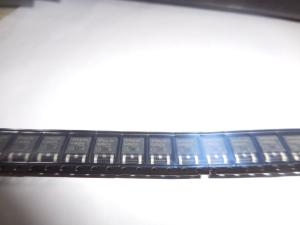

IPD90P04P4L-04 TO-252 Ic Integrated Circuit In Motor Drivers Images
